• PLI (Power Level Indicator)

click on thumbnail to zoom
Item #: PLI
Our Price: $15.99
Quantity:

Stock available

Description  more details

These now have a black PCB.. green pics are there still because we are too lazy to take new pics.

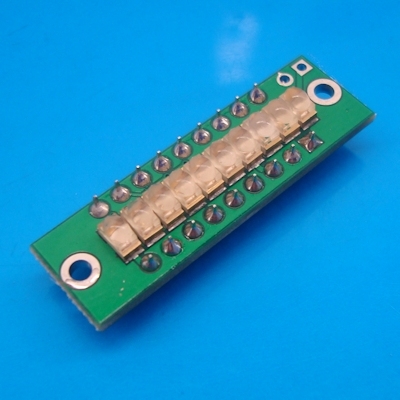

The Power Level Indicator is a small circuit board with 10 LEDs forming a bar graph.

This is a new custom designed PLI. You will need to add heatshrink or make sure no connections are shorted.

There are 10 LED's (5 green, 2 yellow, 3 red) which light up depending on battery voltage.
For 3.7V li-ion battery cell the LED's will all be off at 2.4V and all on at 3.7v
For 7.4V li-ion battery pack the LED's will all be off at 4.7V and all on at 7.3v

The PLI is setup for a single 3.7v Li-ion cell with all active LED's lit by default.

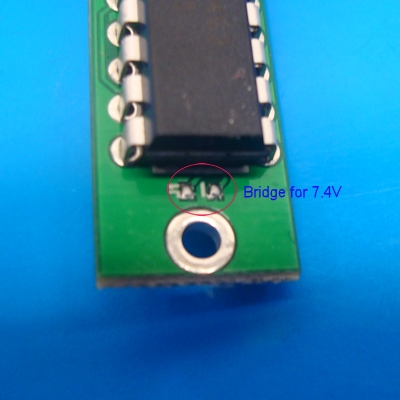

It can be used with a 7.4v Li-ion pack by bridging the two small solder pads on the backside as shown.

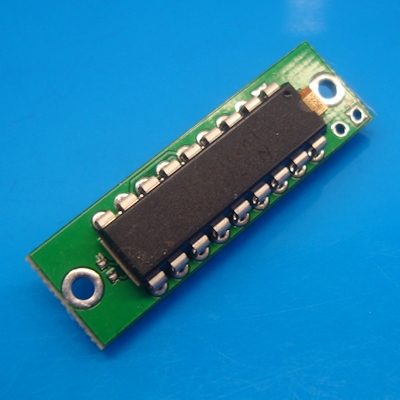

It can be setup to only show one LED at a time by cutting the chip lead as shown.
Dimensions: 1.4" Long x .424" Wide x .338" Thick.

Distance between holes is 1.23" with the holes being .08" in diameter.
