• 16mm Anti Vandal Short Momentary Individually Addressable RGB Switch (Nickel)

click on thumbnail to zoom
Item #: 16NRGBIA
Our Price: $10.00
Quantity:

Stock available

Description

SPST Momentary Red-Green-Blue Illuminated switch with individually addressable LEDs.

Nickel plated body

Will work with all 16mm AV switch boxes. These will NOT work with the AVbezel as the shaft is not long enough to fit the nut on.

Red is 2.2v at 20mA

Green is 3.15v at 20mA

Blue is 3.0v at 20mA

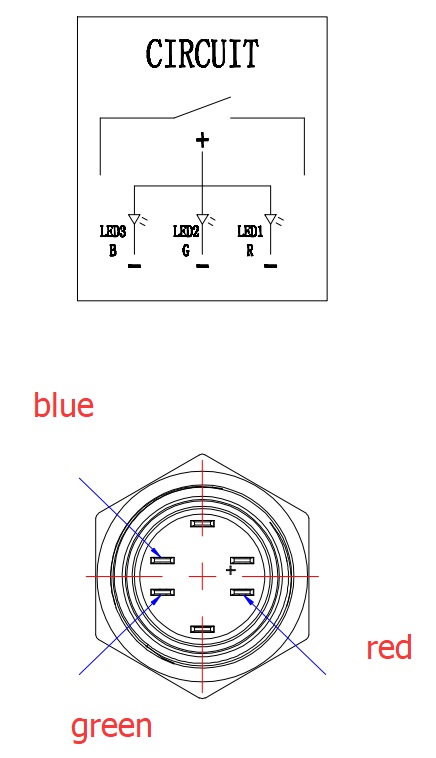

Diagram

There is no internal resistor on these so you need to use the correct resistor in order to not fry the LED.

Reviews

Average Rating:
(based on 1 review)

Showing 1 Review:

RatingReviewerReview
by Matthew
on 5/30/2020
from Brisbane
Fine for anything but CFX
These are common anode RGB switches but the CFX requires common cathode if using with a neopixel setup.
