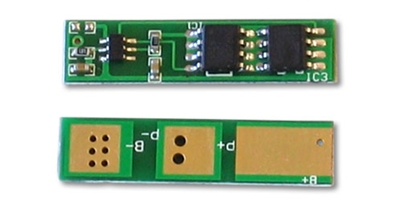

Protection Circuit Board for 3.6V Li-ion and Li-polymer battery pack
Designed for 3.6V Li-ion or Li-Polymer battery
Prevents 3.6V Li-ion or Li-polymer battery from over-charging, over-discharging, and from discharging current more than 8.5A.
Dimension: 29mm x 6mm x 2.85mm
Compatible with both Li-ion and Li-Polymer cells
Specification
Overcharge voltage threshold 4.250 (0.05V)
Overcharge Release threshold 4.05 (0.050V)
Overcharge Delay time 0.73~1.35S Typ.: 1S
Overdischarge Voltage threshold 2.5 (0.080V)
Overdischarge Release Threshold 3.00 (0.100V)
Overdischarge Delay Time 68~138ms Typ.: 100ms
Over Current 1~6A Typ.: 3A
Overcurrent Delay time 6.7 ~ 13.9ms Typ. : 10ms
Impedance <45mohm @ AC 1KHZ
|
|
