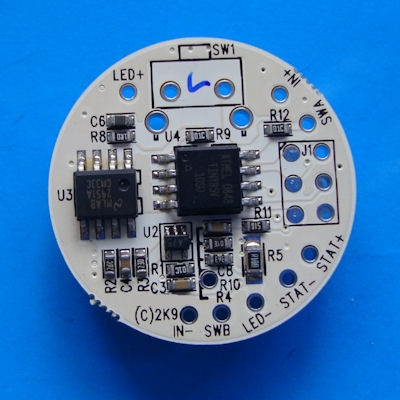

This new saber driver utilizes all the features of the original, only
with more power in a smaller package. A new feature this driver has is
a static shimmer that makes the blade look more “alive”.
* Ramp up/down, static shimmer, optional flash on impact and lockup
* Maximum input voltage has been increased to 30V from the previous 12V
* Maximum output voltage has been increased to 25V. Rebel compatible.
* Uses less than 0.2mA when sleeping (turned off, with power to driver)
* Size is reduced by 35%, 0.80 x 1.1 from previous 1.25 x 1.625
* Pulsed Width Modulation averages 1A output with 1.2A when “clashing”

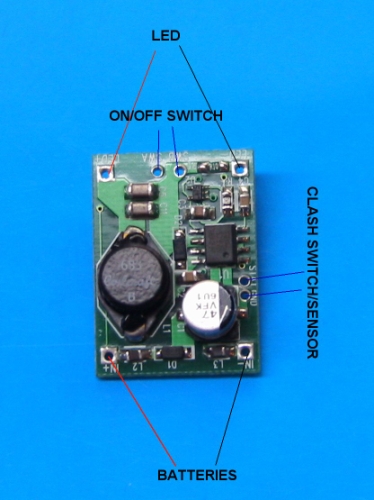

* On board micro on/off switch with contacts for remote switch
* Available in momentary or latching switch configurations
|
|
