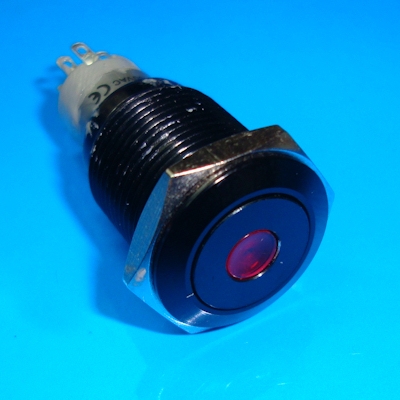

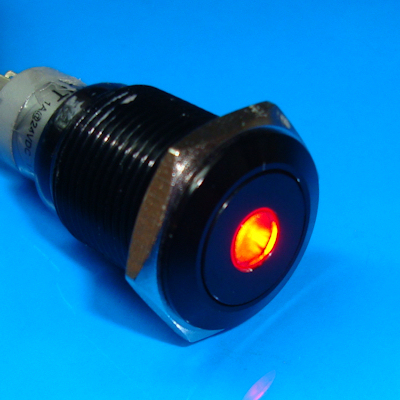

DPDT Momentary red dot Illuminated switch with black body.
There is no internal resistor on these so you need to use the correct resistor in order to not fry the LED. The LED has a forward voltage of 2.1V and runs at 20mA. 4.8V would use a 150ohm 1/4 watt resistor, 6V would use a 220ohm 1/4 watt resistor. If you are not sure which to use please ask.
These are large and the only items currently set up to accept them are the Box style's 2-6 and Bezel for illuminated switches.
|
|
