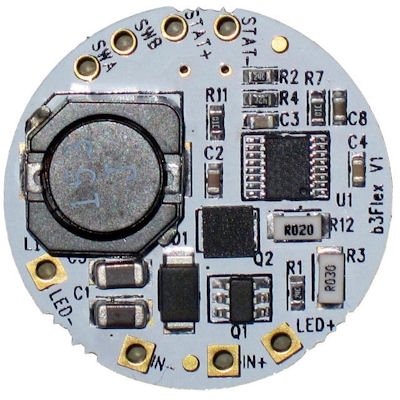

1000mA, 1500mA, 2000mA, or 3000mA constant current LED driver

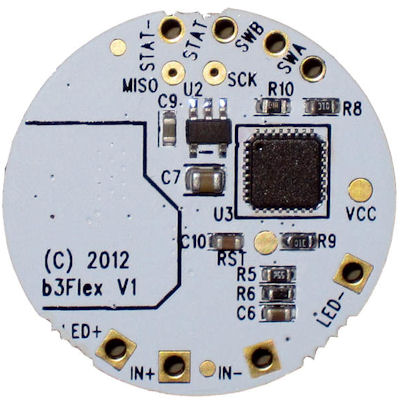

The outlined polygon area on the left side is for attaching to a heatsink when the driver is ran at higher output currents (>1.5A). You will need to source and attach a heatsink if used at 2000mA or 3000mA.
* Ramp up/down, static shimmer, optional flash on impact and lockup
* Maximum input voltage 25V
* Can drive up to 23V of series connected LEDs (from minimum input = (output voltage + 1.1V)).
* Board is 1.0" in diameter, 0.30" thick (tallest components on both sides + board thickness).
* Available in momentary or latching switch configurations
-Connections-
LED- and LED+ connect to the LED
IN- and IN+ connect to the battery pack
SWA and SWB connect to the switch
*optional* STAT and STAT- connect to clash sensor or separate switch to enable flash on clash
|
|
